Descripción:
Compresión de vídeo H.264, WD1 (960 * 576) Resolución de la grabación en tiempo real, salida HDMI y VGA de hasta 1920 x 1080p de resolución, Dual-stream, hasta 4/8/16-ch reproducción sincronizada, NTP, SMTP, NFS, UPnP y protocolos iSCSI

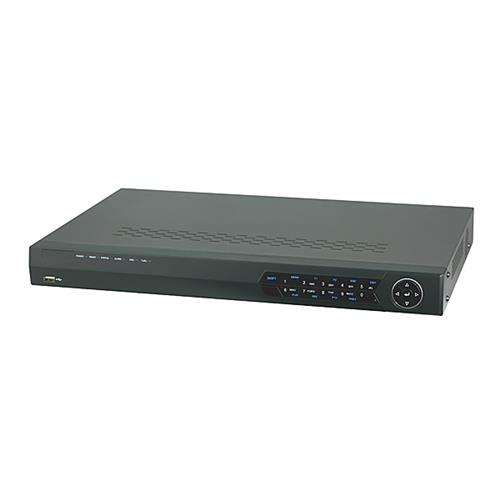

Código: LTD7208-WH
Comparte este producto
| LTD7208-WH | LTD7216-WH | |
| Video / Audio input | ||
| Video compression | H.264 | |
| Video input | 8-ch | 16-ch |
| Video input interface | BNC (1.0 Vp-p, 75 Ω), NTSC / PAL self-adaptive | |
| Audio compression | G.711u | |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Video / Audio output | ||
| HDMI/VGA output | 1-ch, resolution: 1080P: 1920×1080/60Hz; SXGA: 1280×1024/60Hz; 720P:1280×720/60Hz; XGA: 1024×768/60Hz |
|
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution:NTSC: 704 × 480,PAL: 704 × 576 |
|
| Encoding resolution | WD1 / 4CIF / 2CIF / CIF / QCIF | |
| Frame rate | 25 fps(P) /30 fps (N) | |
| Video bit rate | 32Kbps~2048Kbps,or use defined(Max.3072Kbps) | |
| Audio output | 1-ch, RCA (Linear, 1 kΩ) | |
| Audio bit rate | 64 Kbps | |
| Dual-stream | Support; Sub-stream: CIF / QCIF@25 fps(P) /30 fps (N) | |
| Stream type | Video, Video & Audio | |
| Synchronous playback | 8-ch | 16-ch |
| Hard disk | ||
| SATA | 2 SATA interfaces | |
| Capacity | Up to 4TB capacity | |
| External interface | ||
| Network interface | 1, RJ45 10M / 100M Ethernet interface | |
| Serial interface | 1 RS-485 interface, half-duplex | |
| USB interface | 2, USB2.0 | |
| Alarm in/out | 8ch/4ch | 16ch/4ch |
| General | ||
| Power supply | 12V DC | |
| Power Consumption | ≤ 15 W | ≤ 20 W |
| Working temperature | -10 °C ~ +55 °C | |
| Working humidity | 10% ~ 90% | |
| Chassis | 19-inch rack-mounted 1U chassis | |
| Dimension | 445 × 290 × 45 mm | |
| Weight | ≤ 4kg | |
